Floorplan - 2016 Forest River RV Sierra Destination Trailers 402QB
-
-
-
-
+6-
Sleeps 9
-
4 Slides
-
BunkhouseOutdoor Kitchen
-
44ft Long
-
11,289 lbs

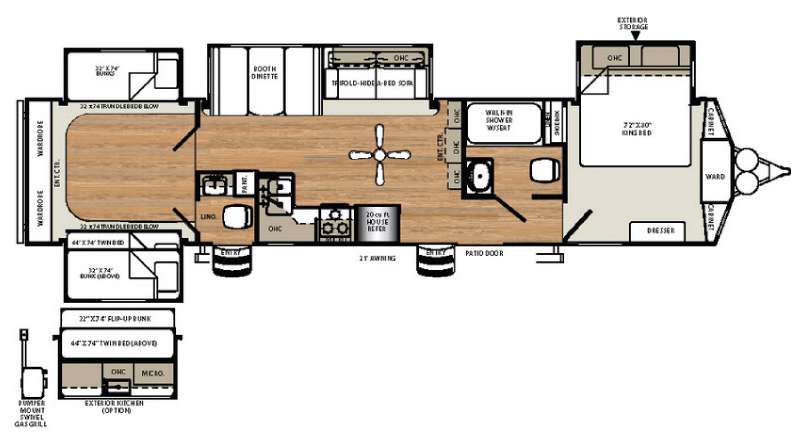

402QB Floorplan
Specifications
| Sleeps | 9 | Slides | 4 |
| Length | 44 ft | Ext Width | 8 ft |
| Ext Height | 12 ft 7 in | Int Height | 7 ft 10 in |
| Hitch Weight | 1180 lbs | GVWR | 13180 lbs |
| Dry Weight | 11289 lbs | Cargo Capacity | 1891 lbs |
| Fresh Water Capacity | 60 gals | Grey Water Capacity | 133 gals |
| Black Water Capacity | 100 gals | Tire Size | 16" |
| Furnace BTU | 35000 btu | VIN | 4X4TSES27GJ041906 |
Description
The 402QB Sierra destination trailer by Forest River offers quad slides, and a rear bunk house as well as a bath and a half!
In the rear, there is a private entrance into the half bath. Off of the bathroom is the bunk house. Your kids are sure to enjoy their own space! There are two bunk slides, double wardrobes, and a rear entertainment center.
The living and kitchen areas offer a slide with a booth dinette, and a tri-fold hide-a-bed slide. There is also an entertainment center along one wall. The kitchen has a double kitchen sink, three burner range, and refrigerator.
The bathroom has a sink, walk-in shower with seat, linen cabinet, and toilet.
In the front bedroom, there is a king bed slide, front wardrobe with cabinets, and a dresser.
You will find plenty of overhead cabinets throughout the destination trailer.
You can even choose an optional exterior kitchen with a sink, and microwave, and a bumper mount swivel gas grill.
Features
Destination Trailers (2016)
- High gloss gel coated color matched exterior fiberglass
- Enclosed and heated dump valves
- Large tinted windows with 80/20 UV prohibitor
- Dexter auto adjust brakes
- Hickory Springs™ radius triple steps with 9″ riser (no pinched fingers)
- Dometic™ "One-Touch" electric awning with adjustable arms and integrated LED light
- 16″ Radial tires-E Rated
- Automotive-style fender skirts
- Hitch light
- Porch light with interior switch
- Patio recreation light with interior switch
- 30 lb. double LP tanks with auto change over
- 2 exterior speakers
- Rain gutters with extra long drip spouts (prevents black streaking)
- Exterior folding grab handle
- 60″ Patio door
Interior
- 94″ interior height with 6'4″ slide heights
- Radius "barreled" ceiling
- Residential stain resistant carpet
- Beauflor® linoleum
- Swivel glider recliners
- Four color coordinated interiors (Carbon, Coffee, Latte, Beachwwod)
- Full extension, soft close ball bearing drawer glides
- Stone cast under mounted kitchen sink
- Washer/dryer prep (select floorplans)
- Handmade cabinetry with screwed lumber core stile construction
- Residential countertops
- Dual zone A/C prep (living room and bedroom)
- Recessed residential LED lighting
- Colored shower surround with etched tile pattern
- Upgraded adjustable shower head with shelf
- Accent paneling in slideouts
- Accent lighting over dinette
- Walk-in shower (select models)
- Crown molding over kitchen cabinets
- Extra large picture windows throughout
- Vented side windows in slideouts
- TV antenna with booster
- Solid wood drawer fronts with birch sides
- Upgraded raised panel cabinet doors with designer rails
- Bedroom slideout fascia
- Serta® memory foam mattress
- Stainless steel kitchen package
- 40″ LED HDTV with Sony DVD and premium soundbar
- Designer window treatment accented per décor
- Ceiling fan
- Hide-a-bed sofa with tri-fold
- Residential carpeting
- Center mounted A/C unit for even cooling
- Quilted bedspread
- Home decor package
- Trash receptacle in kitchen
- 20 cu. ft. stainless steel refrigerator
For Your Safety
- Smoke alarm
- Fire extinguisher
- Breakaway switch (battery hook-up required)
- Dead-bolt lock on entry door
- Liquid propane (LP) gas detector
- Fire escape windows
Appliances/Systems
- Ducted Dometic® 15K A/C with quick cool
- Dual zone thermostat for living room and bedroom A/C
- Floor ducted 35,000 BTU furnace
- Three burner High output range with 22″ oven
- 20 cu. ft. stainless steel refrigerator
- Interior monitor panel for holding tanks
- Interior thermostat for heating and cooling
- Flush floor hydraulic slideouts (per floorplan)
- Satellite and cable hookup with RG-6 cable for high quality picture
- Porcelain foot flush toilets
- Full coach water filtration system
- 10 Gal. DSI water heater
- 65 Amp converter
- Water filter system
- Fantastic fan in bath
Construction
- Welded aluminum-framed, vacuum bonded laminated superstructure
- 2″ x 3″ floor joists 12″ on center
- 5/8″ tongue & groove plywood floor decking
- 3/8″ roof decking (full walk-on roof)
- Cambered powder coated frame with rust prohibitor
- Fully enclosed heated underbelly
- 5″ truss roof rafters
- R-10 sidewall construction
Popular Options
- Solid surface countertops in kitchen
- Free-standing dinette with 4 chairs
- Washer and dryer (per floorplan)
- Sofa IPO bottom bunk (per floorplan)
- Second air conditioner-bedroom
- Fantastic fan with power hood operated with wall switch
- 12 Volt heated holding tanks
- R-38e Insulation package
- Tile pattern Beauflor® linoleum
- Central vacuum
- Bedroom ceiling fan
- Roof ladder
SIERRA Signature Package
- Residential stain resistant carpet
- Serta® memory foam mattress
- Radius 94″ cathedral ceilings
- LED lighting throughout
- "One Touch" Dometic® electric awning w/ LED lights"
- Stainless steel kitchen package
- 15K BTU air conditioner
- King bed standard
- Ceiling fan in living room
- Décor package
- 50 amp service
- High gloss gel coated fiberglass color matched exterior
- 10 gal. G/E water heater w/DSI
- Residential pullout kitchen faucet
- 20 cu. ft. Whirlpool stainless steel refrigerator
- Tinted patio door
- 40″ LED HDTV with Sony DVD and premium soundbar
- Washer/dryer prep (where available)
- Fantastic fan in bathroom
- Tri-fold hide-a-bed
- "Rustic Wood" Beauflor® linoleum
Polar Tech Package
- Thermal pane windows
- Heated holding tanks
- R-38e roof & all floors insulation
- 40K btu furnace
- Double fiberglass insulation in roof & floor
All features and specifications are subject to change.
